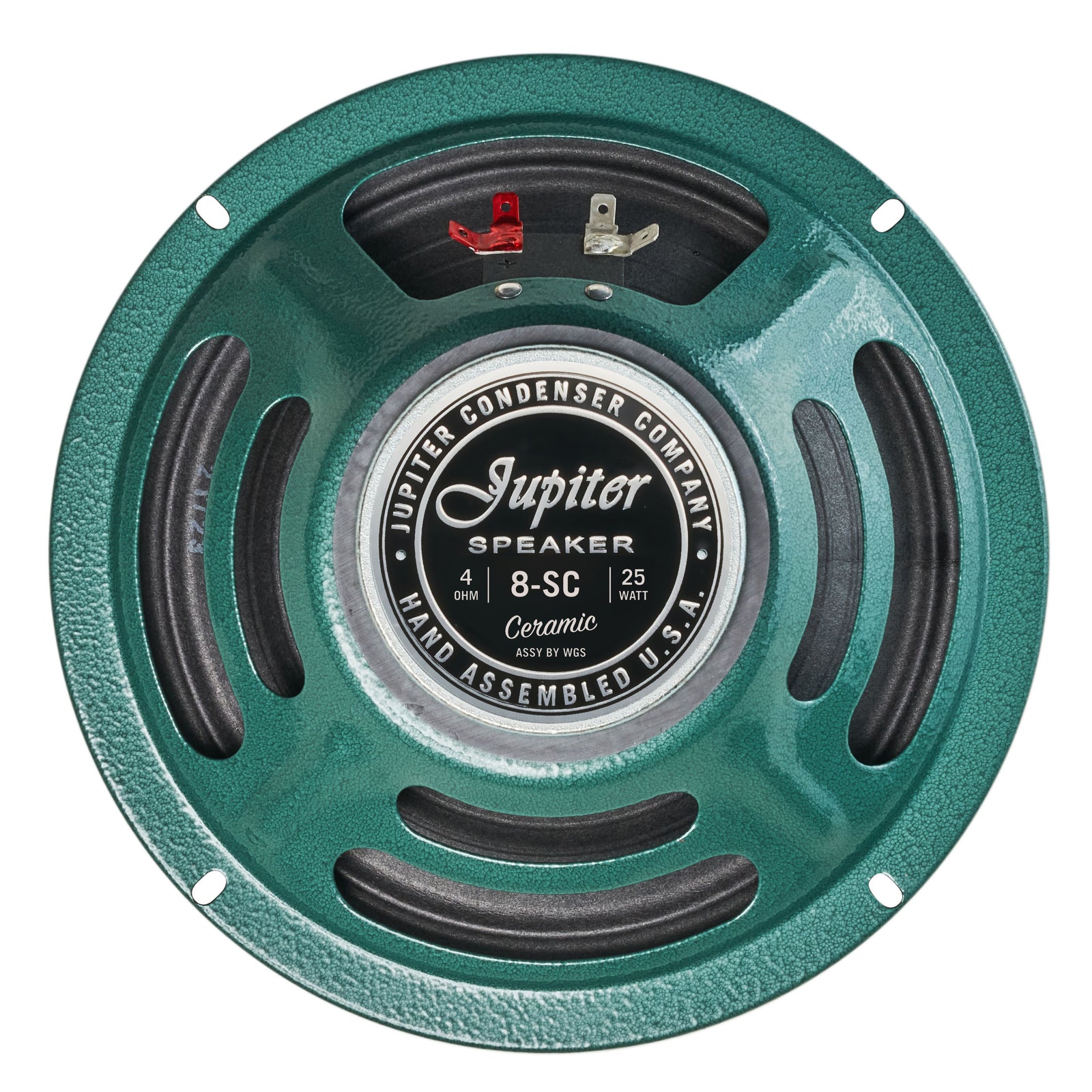

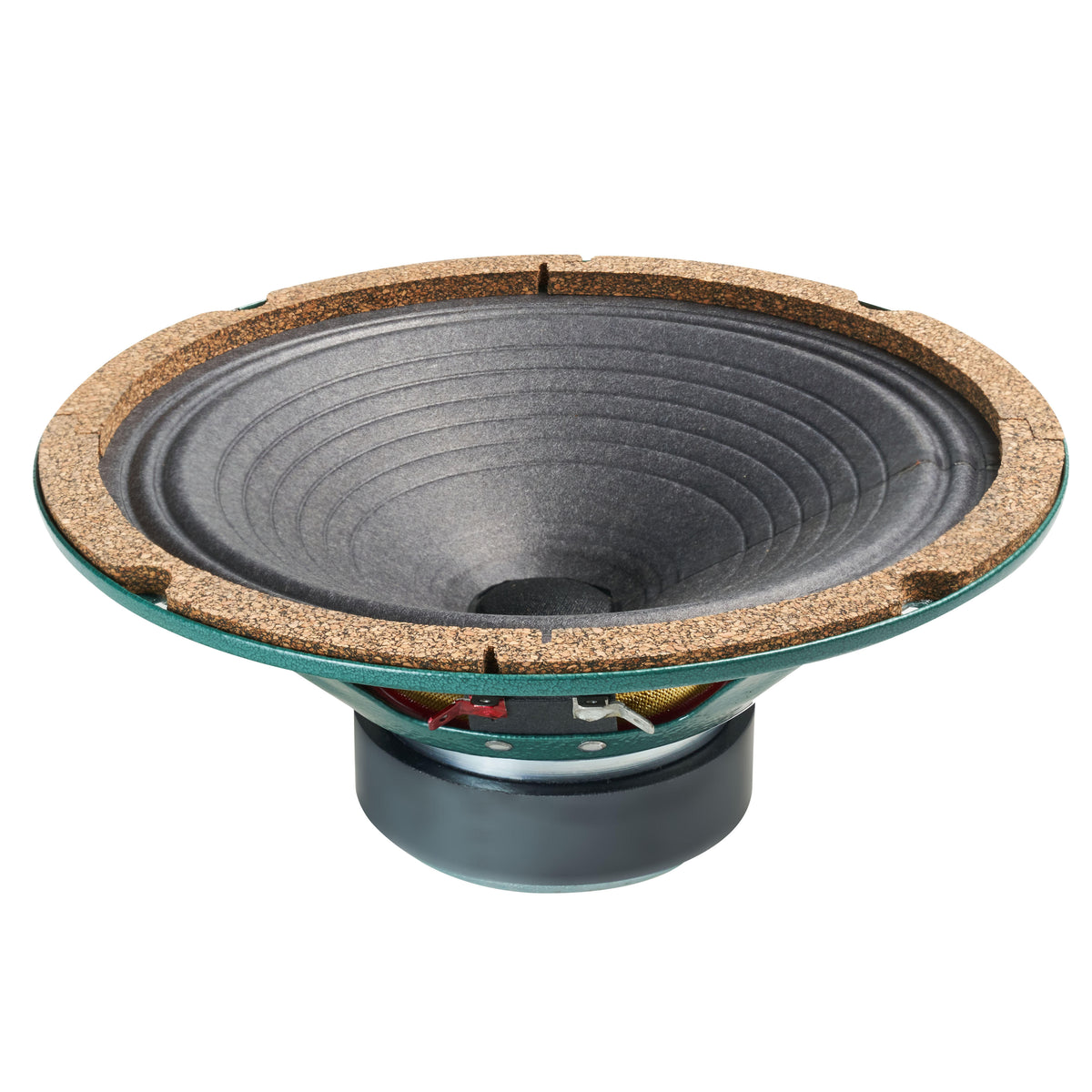

8SC - 8" 25W Vintage American Ceramic Guitar Speaker
Orders have a lead time of approximately 1 week to ship.
Jupiter 8SC is an 8" seamed cone speaker with a small ceramic motor, an upgrade replacement for Jensen C8R.
See Video below: 8SC Ceramic vs. 8SA Alnico
Dimensions:
-Diameter: 8 3/16"
-Depth rear mount: 3 1/2"
-Cut-out hole diameter:
7 3/16”
-Mounting Holes: .18"x.3"
-Number of mounting holes: 4
-Mounting Hole Circle Diameter: 7 3/4"
Specs:
-Power Handling: 25W
-Sensitivity: 94.5 dB
-Voice Coil Diameter: 1"
-Magnet: Small Ceramic - 20oz
-Weight: 2.65lbs
|
Speaker Type Magnet
|
Voice Coil
Diameter
|
Headroom - Clean |
Break-up |
|
SC
|
1"
|
Low |
Early |
|
SA
|
1"
|
Low |
Early |
|
MC
|
1.5"
|
Yes - medium/high |
Clean - Slight Compression |
|
MA
|
1.5"
|
Yes - medium/high |
Clean - Slight Compression |
|
LC
|
1.5"
|
Yes - Clean Headroom |
Lots of Clean Headroom |
|
LA
|
1.5"
|
Yes - Clean Headroom |
Lots of Clean Headroom |
Video by Jack Fossett

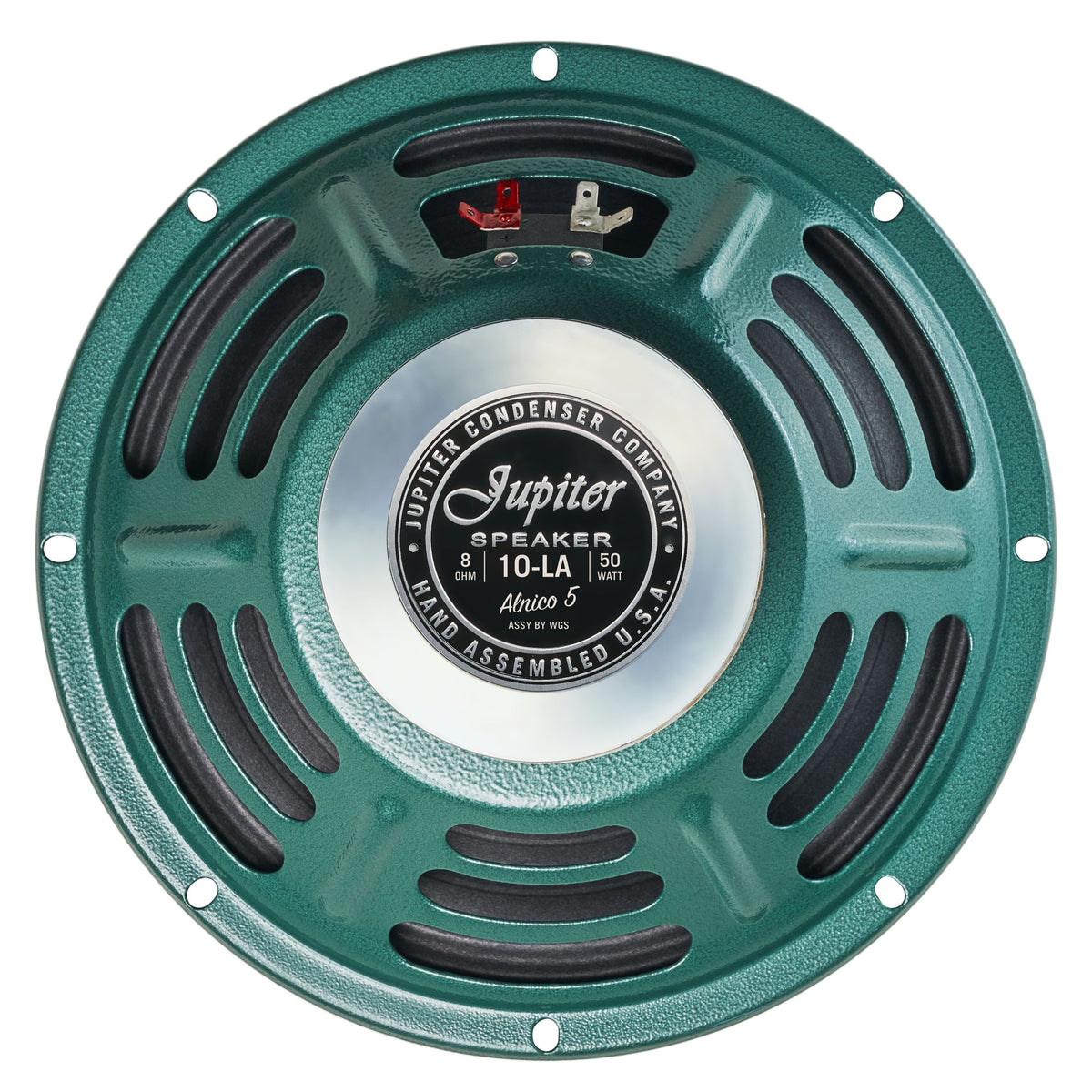

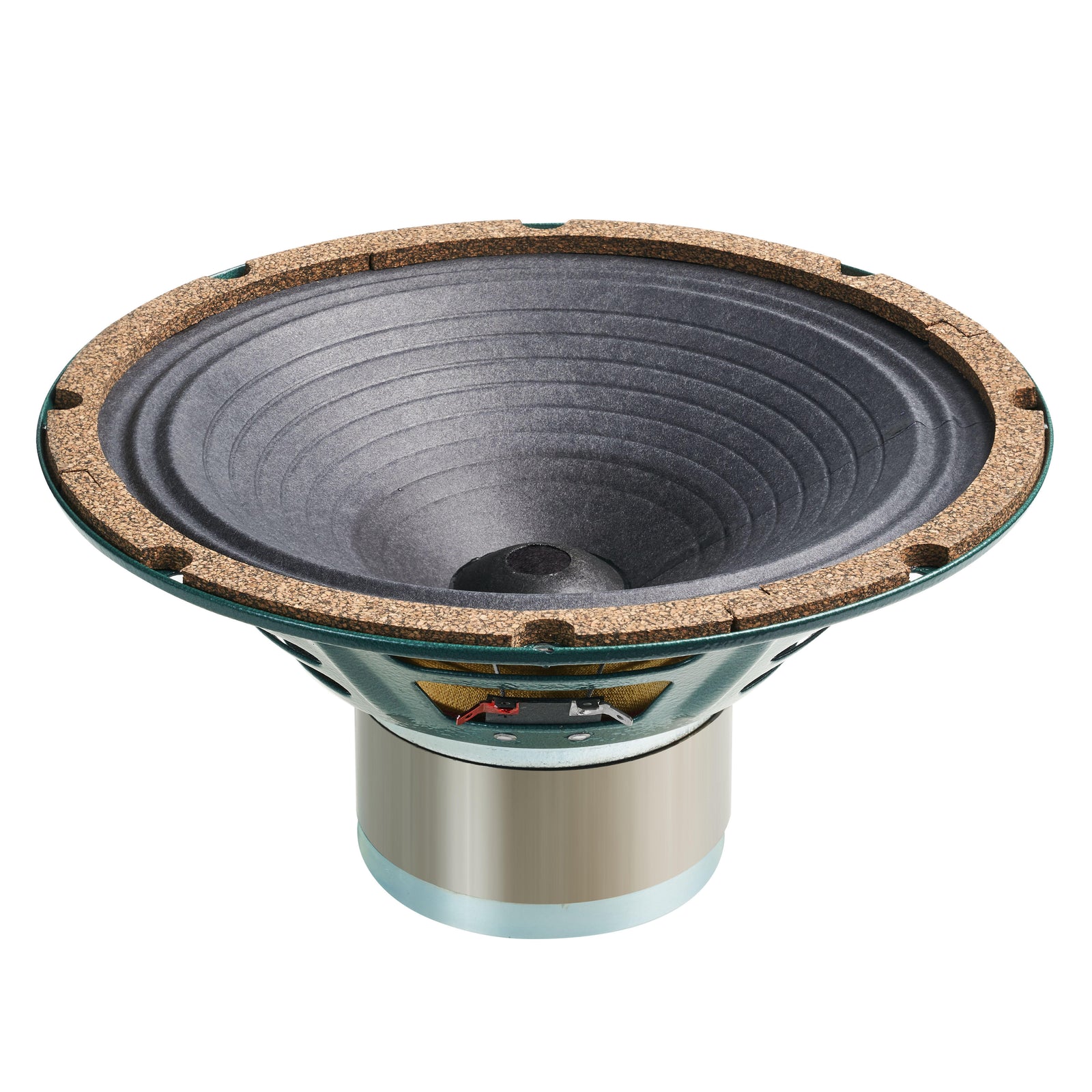

10LA 10" 50W Vintage American Alnico Guitar Speaker
Orders have a lead time of approximately 1 week to ship.
10" seamed ribbed cone with large alnico motor, an upgrade for the Jensen P10N.
Dimensions:
-Diameter 10 3/16"
-Depth rear mount: 5 1/4"
-Cut-out hole diameter 9."
-Mounting Holes 1/4"
-Number of mounting holes - 8
-Mounting Hole Circle Diameter 9 3/4"
Specs:
-Power Handling: 50W
-Sensitivity: 99.5 dB
-Voice Coil Diameter: 1.5"
-Magnet: Large Alnico - 40oz
-Impedance Available: 4ohm, 8ohm, or 16ohm.
-Weight: 7.5lbs

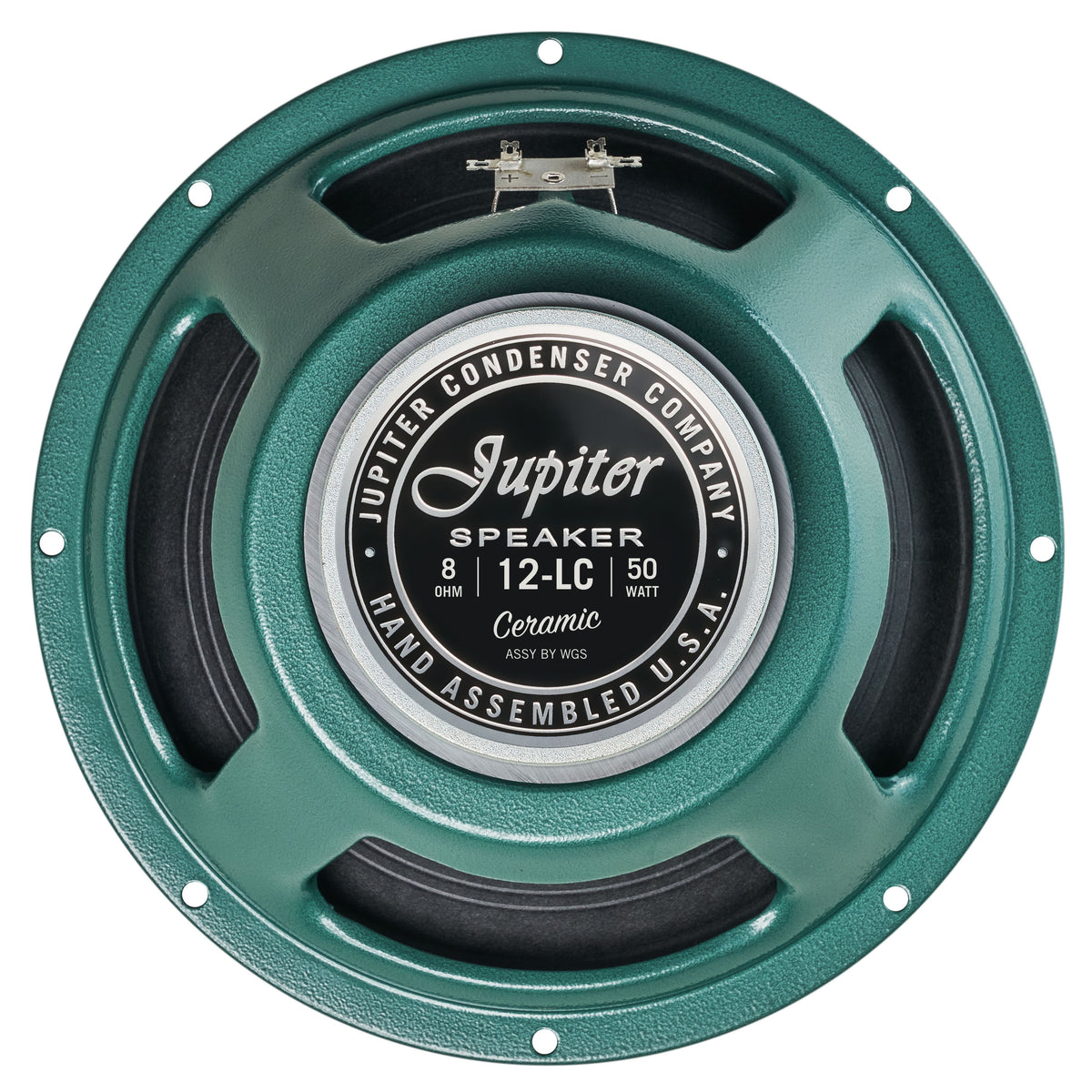

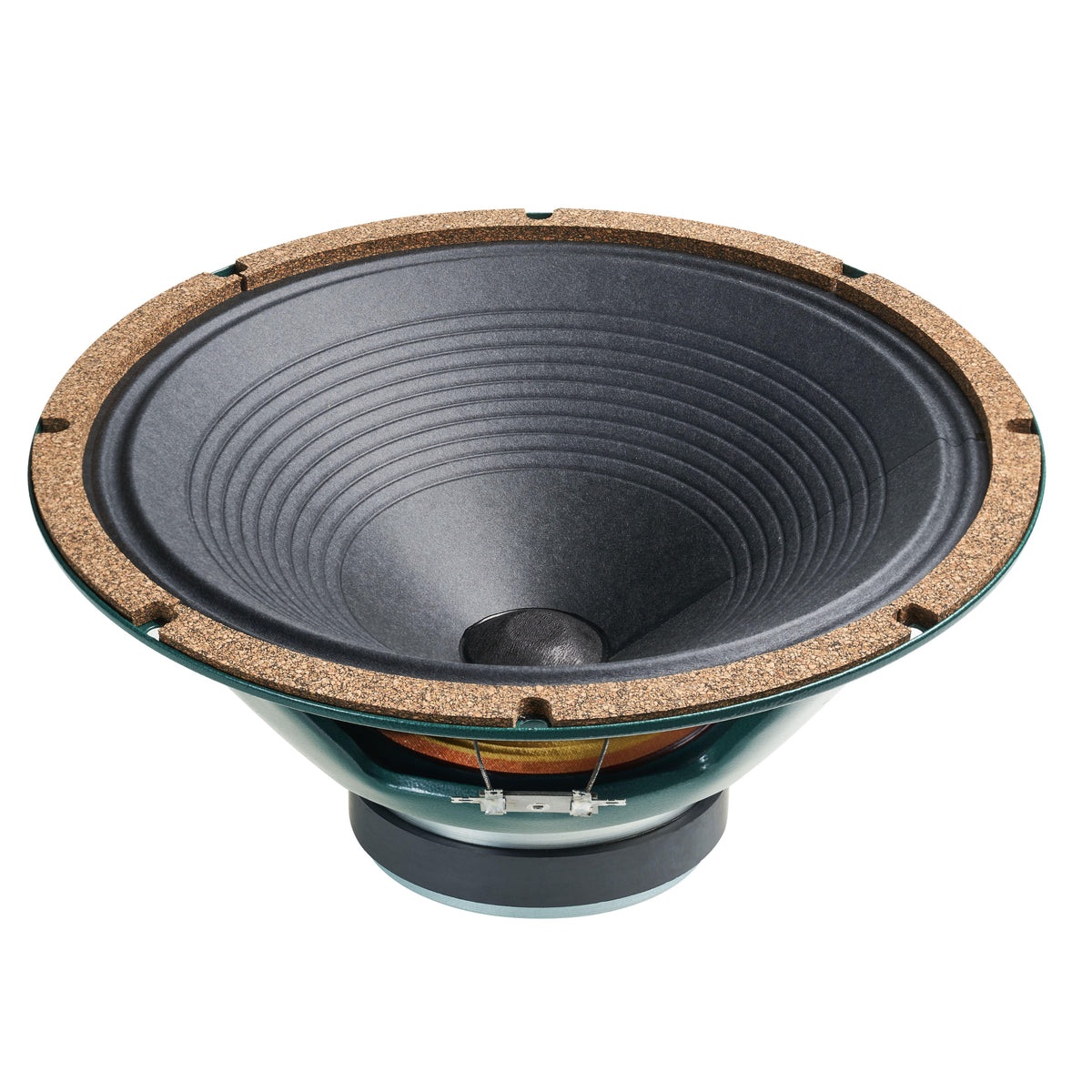

12LC - 12" 50W Vintage American Ceramic Guitar Speaker
Orders have a lead time of approximately 1 week to ship.
Featured in ToneQuest Report -
12" seamed cone with Large Ceramic Magnet, upgrade replacement for Jensen C12N.
Dimensions:
-Diameter: 12 1/4"
-Depth rear mount: 5 1/16"
-Cut-out hole diameter". 11"
-Mounting Holes: 1/4"
-Number of mounting holes: 8
-Mounting Hole Circle Diameter: 11 3/4"
Specs:
-Power Handling: 50W
-Sensitivity: 99.5 dB
-Voice Coil Diameter: 1.5"
-Magnet: Ceramic - 35oz
-Weight: 9lbs
ToneQuest Report PDF - on Jupiter Speakers April 2023
Video: 12LA vs. 12LC - Alnico vs. Ceramic by Jack Fossett
Jupiter Speakers and Capacitors are used extensively by Milkman in their collection of amps.
Check out Carr Amp's "Super Bee" Amplifier featuring some juicy Jupiter Coupling Capacitors and Cosmos Electrolytics.
Jupiter Yellow tone caps are featured inside the Z-Luxe and Z-Threapy.
Jupiter Capacitors are used in Fat Jimmy premium and artist builds along with select vintage components.
Jupiter Speakers are specifically developed for guitar and tone applications.
Our mission is to reveal the natural vibrance and presence of the instrument.
