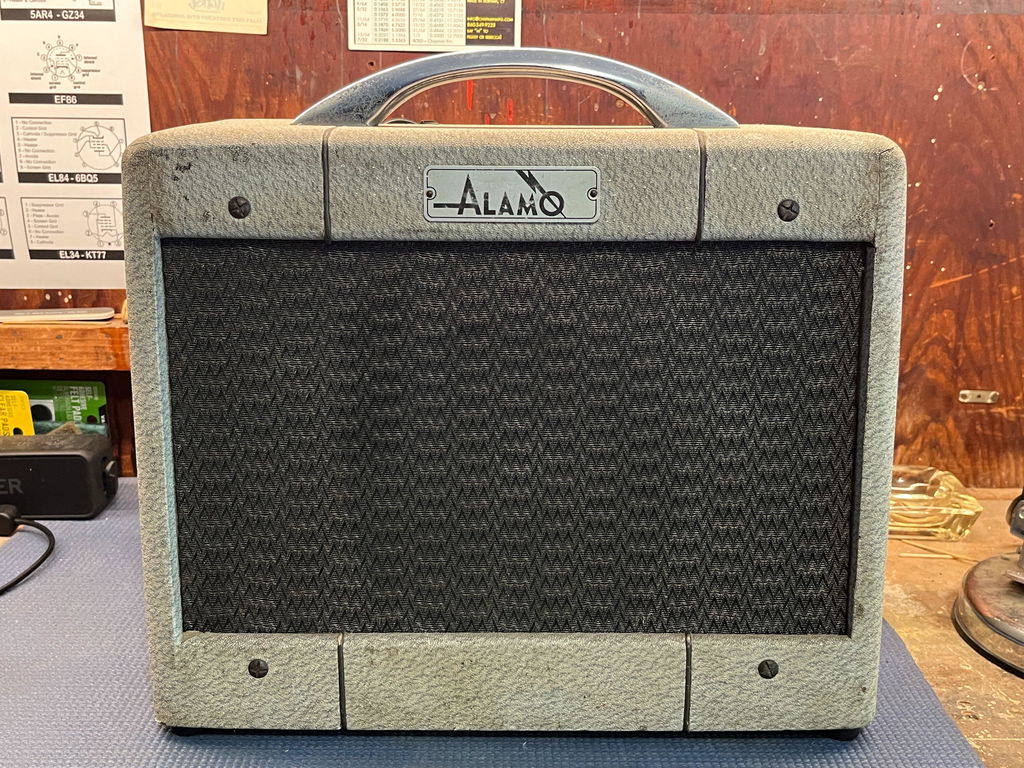

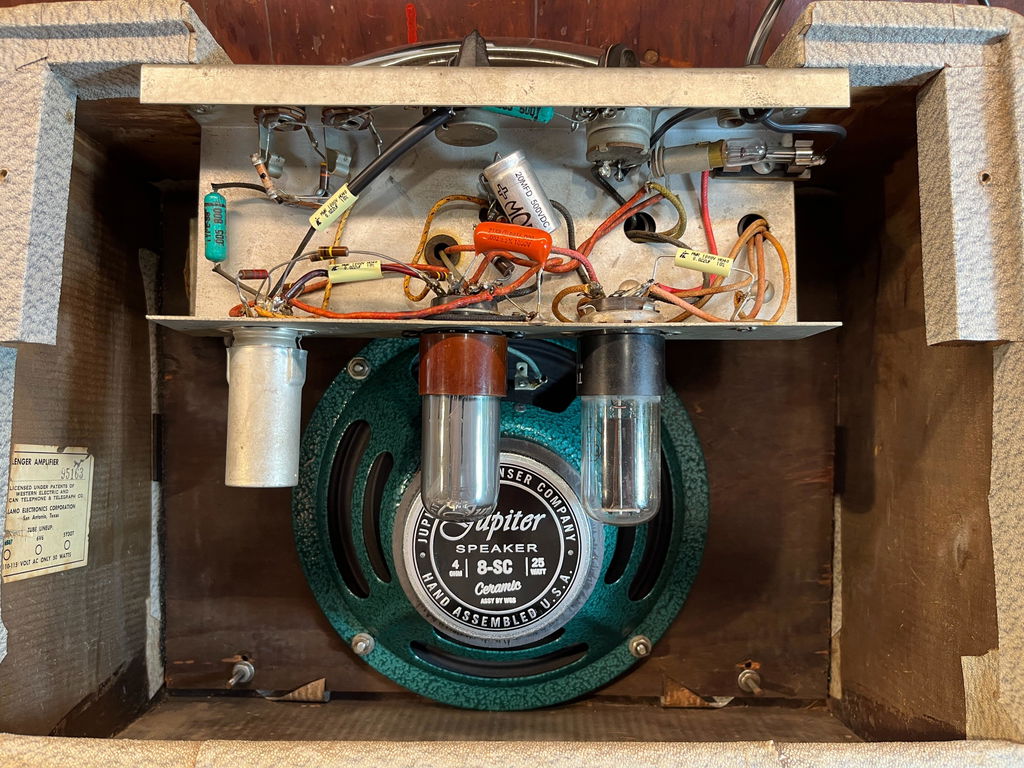

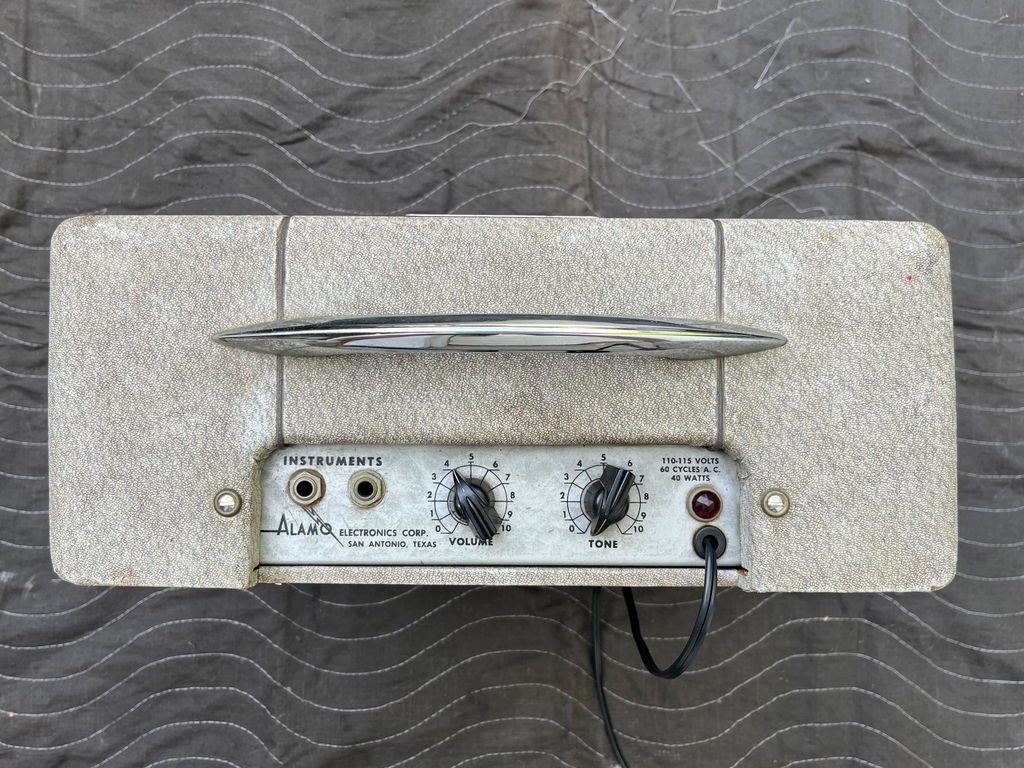

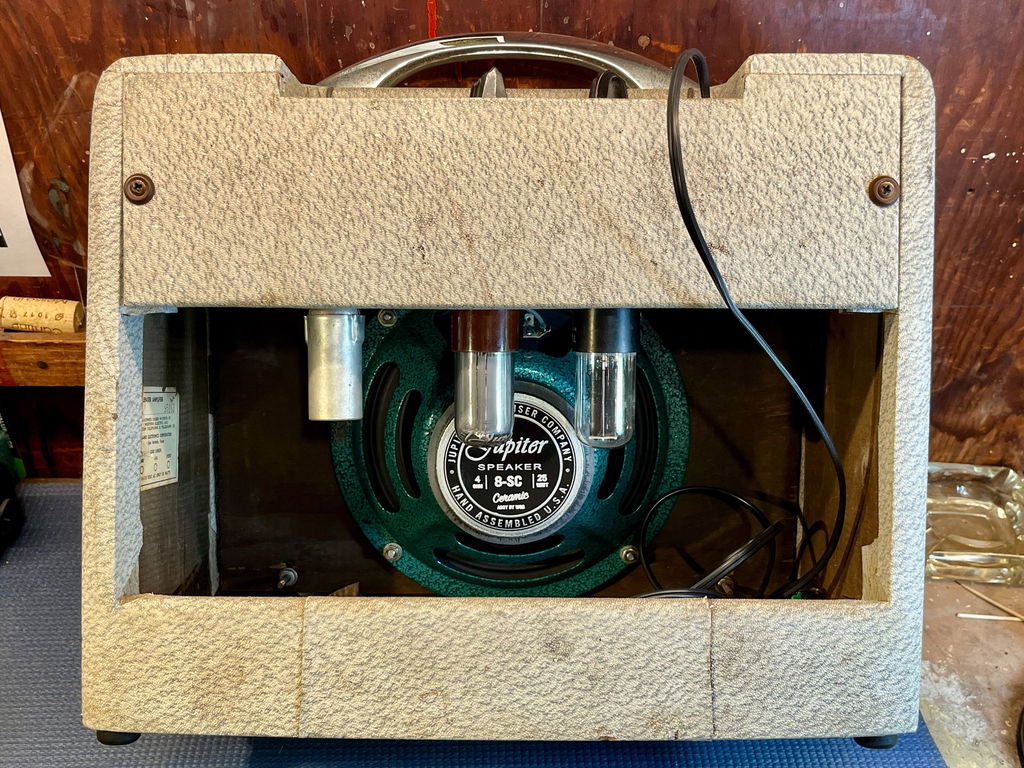

Bought the 4-Ohm 8SC for my beloved Alamo, essentially a tweed Champ with a tone control. Had a Weber/Kendrick 8" ceramic speaker in it for years that was fine, but I loved the looks and reputation of the 8SC so much (and I had just installed one in a friend's '56 Champ) that I went for the new Jupiter speaker. And I'm really glad I did. Somehow I think the slightly smaller voice coil might give a crispness and chime that leans sonically into Alnico territory, while maintaining a sturdy low end response. I'm very pleased and this will be the last speaker the little Alamo will ever get on my watch!
SO CLEAR & PUNCHY WITH WAY MORE HEADROOM ! MY GUITAR BUDDY WHO DOES ALL MY GUITAR & AMP WORK EVEN BOUGHT ONE FOR HIS 1960 ALAMO. THANKS EVERYBODY ! TC.
This thing is incredible in my Vibrochamp. Beautiful sound after Marty Futara cleaned this little guy up and made it sing. He was so impressed he’s considering putting one in a 68 all original champ. Tone is amazing and the amp sound much fuller and bigger than it is.
Killer speaker, really made my old vibro champ come alive!
1992 Fender Bronco loves it and so do I
Please allow approximately one week for us to build your speaker.

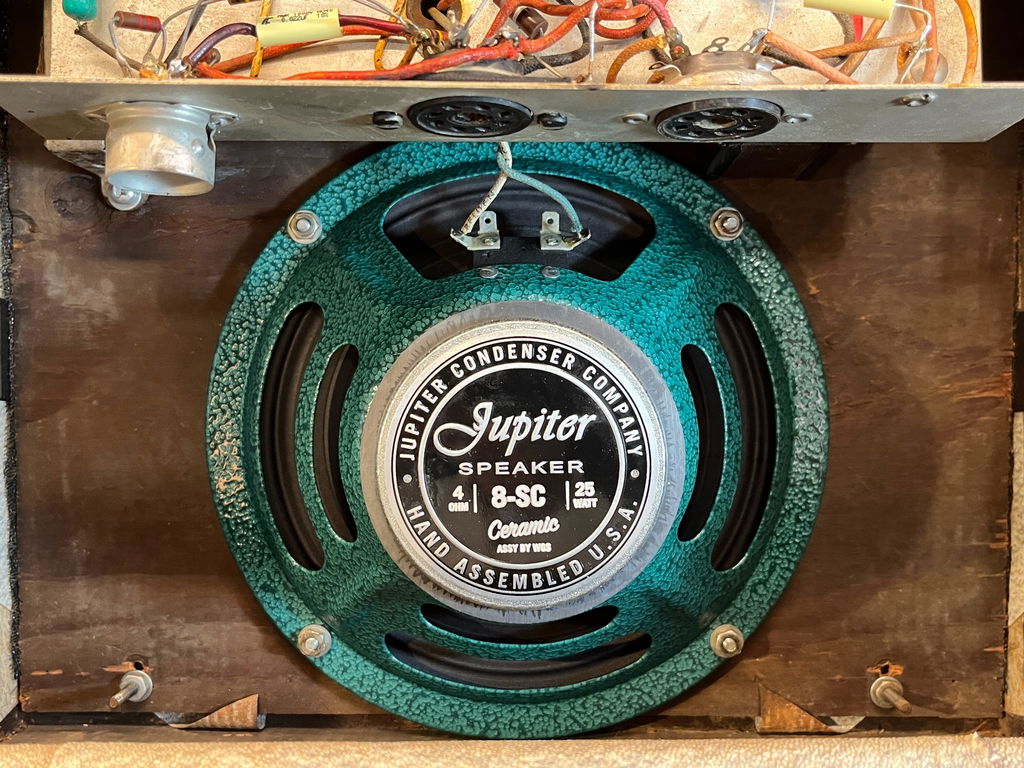

Jupiter 8SC is an 8" seamed cone speaker with a small ceramic motor, an upgrade replacement for Jensen C8R.
See Video below: 8SC Ceramic vs. 8SA Alnico
Dimensions:
-Diameter: 8 3/16"
-Depth rear mount: 3 1/2"
-Cut-out hole diameter:
7 3/16”
-Mounting Holes: .18"x.3"
-Number of mounting holes: 4
-Mounting Hole Circle Diameter: 7 3/4"
Specs:
-Power Handling: 25W
-Sensitivity: 94.5 dB
-Voice Coil Diameter: 1"
-Magnet: Small Ceramic - 20oz
-Weight: 2.65lbs
|
Speaker Type Magnet
|
Voice Coil
Diameter
|
Headroom - Clean |
Break-up |
|
SC
|
1"
|
Low |
Early |
|
SA
|
1"
|
Low |
Early |
|
MC
|
1.5"
|
Yes - medium/high |
Clean - Slight Compression |
|
MA
|
1.5"
|
Yes - medium/high |
Clean - Slight Compression |
|
LC
|
1.5"
|
Yes - Clean Headroom |
Lots of Clean Headroom |
|
LA
|
1.5"
|
Yes - Clean Headroom |
Lots of Clean Headroom |
